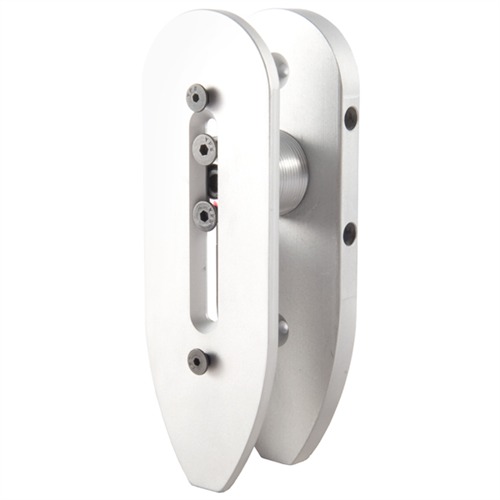

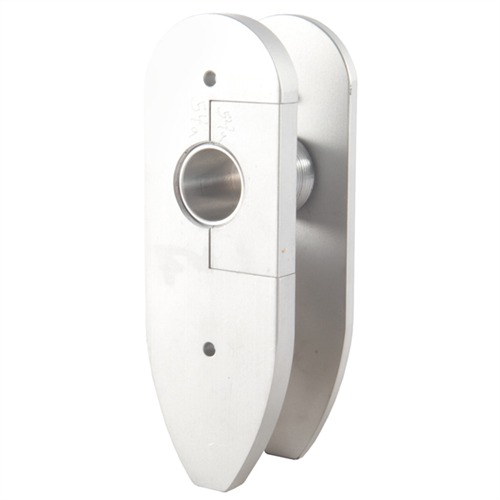

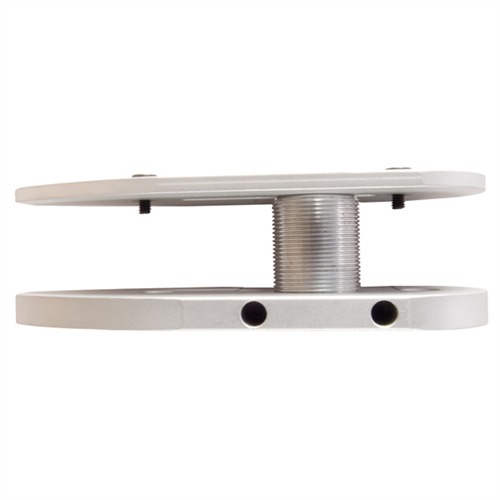

Three-way adjustments for perfect gun fit, higher scores and improved shooting comfort. Base plate mounts to gun, your pad mounts to pad plate and the threaded tube provides a total of 1-1/8" in/out adjustment. Make full turns or stop the rotation anywhere in 360° and lock with the socket head set screws. Slotted top plate allows 1½" vertical adjustment. Slide a Breako Recoil Reducer into the tube for a neat, compact installation. Combine with Graco's Adjustable Comb Hardware to make your own "Try Stock".
SPECS: Matte finished aluminum. 5-13/16" (14.7cm) long x 2" (5cm) wide x 9/16" (14.3mm) thick (adjusted fully "in"). Base plate attaching holes are 3¼" (82.5mm) center-to-center. Auto Model for Remington 1100, 11-87, Beretta 302/303 etc., positions tube ½" (12.7mm) closer to top attaching hole to clear action spring tubes. Requires drilling 1-1/8" (28.6mm) hole in stock.
Tre-vägs justeringar för perfekt passform av vapnet, högre poäng och förbättrad skjutkomfort. Basplattan monteras på vapnet, din kudde monteras på kuddeplattan och det gängade röret ger totalt 1-1/8" in/ut justering. Gör hela varv eller stoppa rotationen var som helst i 360° och lås med skruvarna med sexkantshuvud. Den skårade toppplattan möjliggör 1½" vertikal justering. Sätt in en Breako Recoil Reducer i röret för en snygg, kompakt installation. Kombinera med Gracos justerbara Comb Hardware för att skapa din egen "Try Stock".
SPECIFIKATIONER: Mattlackad aluminium. 5-13/16" (14,7 cm) lång x 2" (5 cm) bred x 9/16" (14,3 mm) tjock (justerad helt "in"). Fästhålen för basplattan är 3¼" (82,5 mm) center-till-center. Auto Modell för Remington 1100, 11-87, Beretta 302/303 etc., positionerar röret ½" (12,7 mm) närmare det övre fästhålet för att frigöra fjädrarna i åtgärden. Kräver borrning av ett 1-1/8" (28,6 mm) hål i kolven.
