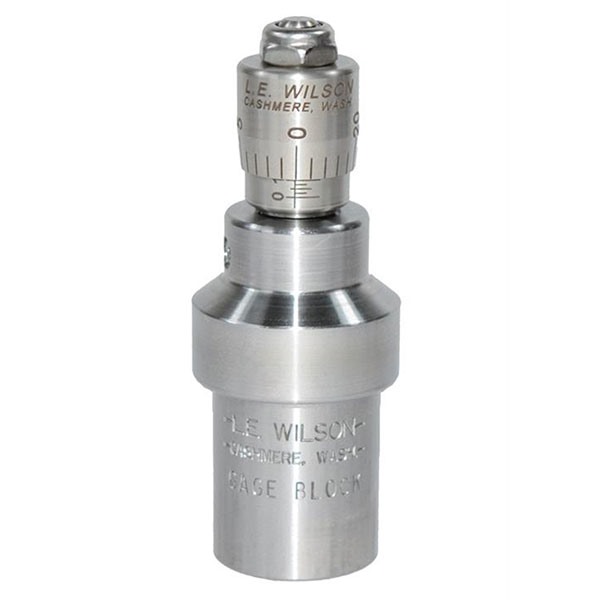

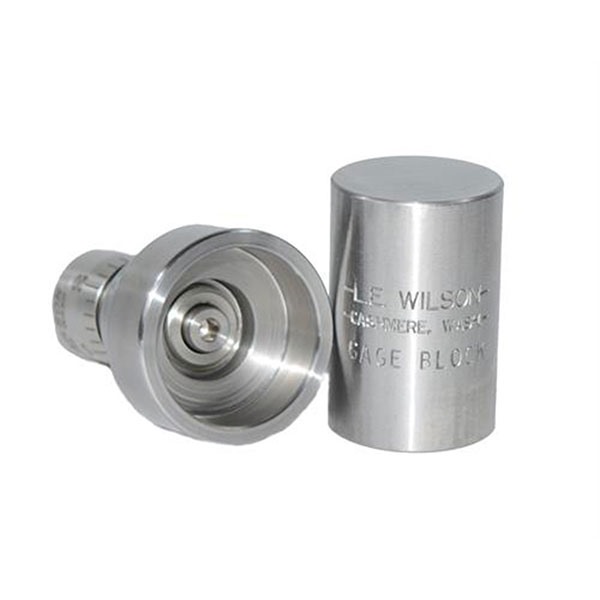

Every reloader should know exactly how much your Full Length Sizing Die is pushing back the shoulder. With the L.E.Wilson Case Gage Depth Micrometer you can do just that! It has never been easier to measure your cases headspace before and after sizing. The Depth Mic allows you to slip the micrometer perfectly over the top of the gage with your case inserted into the gage and take a measurement. Graduations of .001 comes with a Gage Block. One size works for all L.E. Wilson Gages.
Mer...
Varje omladdare bör veta exakt hur mycket din Full Length Sizing Die trycker tillbaka axeln. Med L.E.Wilson CASE GAGE DEPTH MICROMETER kan du göra just det! Det har aldrig varit enklare att mÀta dina hylsors headspace före och efter storleksanpassning. Depth Mic tillÄter dig att passa mikrometern perfekt över toppen av mÀtverktyget med din hylsa insatt i mÀtverktyget och ta en mÀtning. Graderingar av .001 kommer med en Gage Block. En storlek fungerar för alla L.E. Wilson Gages.
Mer...
Kundernas betyg pÄL.E. WILSON CASE GAGE DEPTH MICROMETER
Antal betyg: 1
FrÄn brownells.com: 1
Medelbetyg: 4
Does not work correctly on all cases(2018-06-02)
Used in conjunction with an L.E. Wilson Case Gage this becomes an excellent and easy to use tool for knowing the headspace of a case. The micrometer does not have a vernier scale, but most users will probably be able to determine variations in headspace within +/- 0.0002". The result: shoulder bumping is no longer a guessing game. However, there is one caution. As shipped, the micrometer spindle has a considerable chamfer, so much so, that the spindle head can drop into the primer pocket recess of some cases (I ran into this problem with Lapua 8x57 Mauser cases). I sent mine back to L.E. Wilson and much to their credit they removed the chamfer from the spindle at no cost. Now it works fine. FYI: the spindle diameter is close to 0.270". If any part of a primer recess has a diameter greater than 0.270" then removing the chamfer on the spindle will not solve the problem. I regret that I did not record the diameter of the "as shipped" flat portion of a chamfered spindle, As a consequence, I can not tell you the maximum diameter of a primer recess for which the "as shipped" micrometer will give you reliable readings, but I suspect it will be reliable on most cases.
Produktnr: 749016634 L.E. WILSON CASE GAGE DEPTH MICROMETER Tillverkarens produktnummer: CG-MIC Varje omladdare bör veta exakt hur mycket din Full Length Sizing Die trycker tillbaka axeln. Med L.E.Wilson CASE GAGE DEPTH MICROMETER kan du göra just det! Det har aldrig varit enklare att mÀta dina hylsors headspace före och efter storleksanpassning. Depth Mic tillÄter dig att passa mikrometern perfekt över toppen av mÀtverktyget med din hylsa insatt i mÀtverktyget och ta en mÀtning. Graderingar av .001 kommer med en Gage Block. En storlek fungerar för alla L.E. Wilson Gages.
1699SEK51 699,00 kr
*
Levernastid ca. 14-21 dagar. 5 st. i centrallagret.
MĂ€t din hylsas headspace enkelt med L.E. Wilson CASE GAGE DEPTH MICROMETER! đ Perfekt för noggranna justeringar före och efter storleksanpassning.
Every reloader should know exactly how much your Full Length Sizing Die is pushing back the shoulder. With the L.E.Wilson Case Gage Depth Micrometer you can do just that! It has never been easier to measure your cases headspace before and after sizing. The Depth Mic allows you to slip the micrometer perfectly over the top of the gage with your case inserted into the gage and take a measurement. Graduations of .001 comes with a Gage Block. One size works for all L.E. Wilson Gages.
Mer...
Varje omladdare bör veta exakt hur mycket din Full Length Sizing Die trycker tillbaka axeln. Med L.E.Wilson CASE GAGE DEPTH MICROMETER kan du göra just det! Det har aldrig varit enklare att mÀta dina hylsors headspace före och efter storleksanpassning. Depth Mic tillÄter dig att passa mikrometern perfekt över toppen av mÀtverktyget med din hylsa insatt i mÀtverktyget och ta en mÀtning. Graderingar av .001 kommer med en Gage Block. En storlek fungerar för alla L.E. Wilson Gages.
Mer...
Kundernas betyg pÄL.E. WILSON CASE GAGE DEPTH MICROMETER
Antal betyg: 1
FrÄn brownells.com: 1
Medelbetyg: 4
Does not work correctly on all cases(2018-06-02)
Used in conjunction with an L.E. Wilson Case Gage this becomes an excellent and easy to use tool for knowing the headspace of a case. The micrometer does not have a vernier scale, but most users will probably be able to determine variations in headspace within +/- 0.0002". The result: shoulder bumping is no longer a guessing game. However, there is one caution. As shipped, the micrometer spindle has a considerable chamfer, so much so, that the spindle head can drop into the primer pocket recess of some cases (I ran into this problem with Lapua 8x57 Mauser cases). I sent mine back to L.E. Wilson and much to their credit they removed the chamfer from the spindle at no cost. Now it works fine. FYI: the spindle diameter is close to 0.270". If any part of a primer recess has a diameter greater than 0.270" then removing the chamfer on the spindle will not solve the problem. I regret that I did not record the diameter of the "as shipped" flat portion of a chamfered spindle, As a consequence, I can not tell you the maximum diameter of a primer recess for which the "as shipped" micrometer will give you reliable readings, but I suspect it will be reliable on most cases.
