BROWNELLS
BOLT LAPPING TOOLS

050806008250 080097005

Interchangeable Design Gives Constant Spring Pressure For Precise Mating Of Locking Lug Recesses

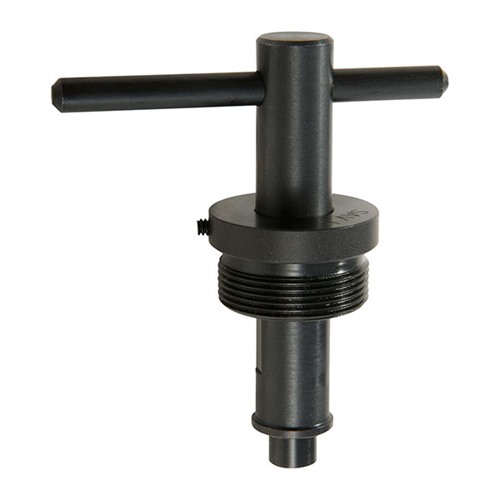

Spring-loaded tool gives constant, straight-back pressure to keep bolt lugs square against the receiver while lapping with 600 to 800 grit, silicon carbide abrasive. Provides better results than mere thumb pressure. Interchangeable threaded sleeves fit popular actions listed below.

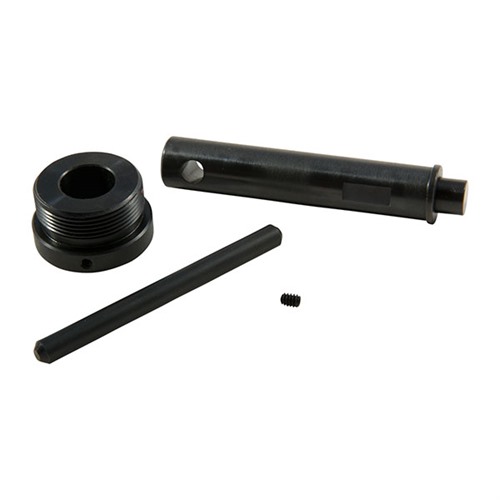

SPECS: 3¾" (9.5cm) long, ¾ lb. (340 g). M14/M1A Set sleeve includes large diameter plunger and special lapping handle required for these models. Mauser Large sleeve fits large ring Mauser actions. Mauser Small fits small ring Mauser actions. Savage Small sleeve fits Savage actions in all calibers except Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM), and Win Short Mag (WSM). Savage Large sleeve fits Savage actions on ly in RUM, RSUM, and WSM calibers. One Gun Set contains bolt tool body, plunger, and correct size sleeve for model listed. M14/M1A One Gun Set contains bolt tool body, large diameter plunger, correct size sleeve, and special sleeve, and special bolt lapping tool unique to M14/M1A/M1 Garand only. Kit contains all tools necessary to lap all models listed in chart. */**Special price, see below.

Mer...

Utbytbar design ger konstant vårförbelastning för exakt passform av låsande luggutrymmen

Vårförbelastat verktyg ger konstant, rakt bakåtryck för att hålla bultlåsarna kvadratiska mot mottagaren medan lappning sker med 600 till 800 korn, kiseldioxid slipmedel. Ger bättre resultat än bara tumtryck. Utbytbara gängade hylsor passar populära aktioner listade nedan.

SPECS: 3¾" (9.5cm) lång, ¾ lb. (340 g). M14/M1A Set hylsan inkluderar en stor diameterplunger och ett speciellt lappningshandtag som krävs för dessa modeller. Mauser Large hylsa passar stora ring Mauser-aktioner. Mauser Small passar små ring Mauser-aktioner. Savage Small hylsa passar Savage-aktioner i alla kalibrar förutom Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM) och Win Short Mag (WSM). Savage Large hylsa passar endast Savage-aktioner i RUM, RSUM och WSM-kalibrar. One Gun Set innehåller verktygskropp för bult, plunger och korrekt storlekshylsa för den listade modellen. M14/M1A One Gun Set innehåller verktygskropp för bult, plunger med stor diameter, korrekt storlekshylsa och ett speciellt bultlappningsverktyg unikt för M14/M1A/M1 Garand. Kit innehåller alla verktyg som behövs för att lappa alla modeller som listas i diagrammet. */**Specialpris, se nedan.

Mer...

Kundernas betyg påBROWNELLS 2-PIECE BOLT LAPPING KIT FOR SAVAGE LARGE

Antal betyg: 1
Från brownells.com: 1
Medelbetyg: 5

Very nice fit of parts. (2015-08-31)

I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.

Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.

I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.

Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.

Läs 1 fler betyg på brownells.com

379 3999 17 SEK

Produktnr: 080097005
BROWNELLS 2-PIECE BOLT LAPPING KIT FOR SAVAGE LARGE 050806008250 Vårförbelastat verktyg ger konstant, rakt bakåtryck för att hålla bultlåsarna kvadratiska mot mottagaren medan lappning sker med 600 till 800 korn, kiseldioxid slipmedel. Ger bättre resultat än bara tumtryck. Utbytbara gängade hylsor passar populära aktioner listade nedan.

1449 SEK 1 1 449,00 kr *

Levernastid ca. 14-21 dagar.
1 st. i centrallagret.

Funktioner: Make: Savage Arms Modell: Universal Gevär
