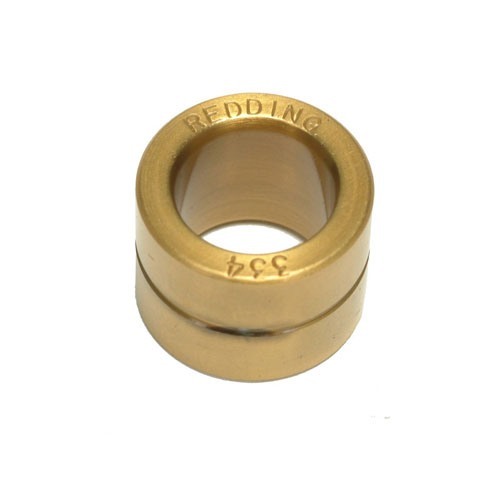

Heat treated steel bushings as above, but with the addition of a Titanium Nitride coating to further increase the effective surface hardness and reduce sizing friction. Bushings are available throughout the range of .185" thru .368" in .001" increments. The last three digits of the part (#RD76XXX) denotes bushing size. .185 to .252 .253 to .305 .306 to .368
Determining Redding Bushing Size
The proper bushing size can be easily determined by measuring the outside neck diameter of your loaded cartridges with a precision micrometer or a dial caliper. Then, simply subtract .001" from the cartridge that had the smallest average neck diameter. This diameter bushing will generally size case necks just enough to create the proper press fit for the bullet.
If you are using a Type “S” style die and not turning the outside of your case necks, we suggest using a bushing .002" smaller than your smallest average neck diameter, and using the expander ball included with your Type “S” die. This size bushing will still give you minimal sizing (maximizing the life of your brass) and the expander ball will insure that each cartridge has the same bullet grip.
Redding has found that when you have cases with neck wall thicknesses on the thin side of the SAAMI tolerance, your fired case will measure considerably larger (.006" to .010" larger) than your loaded rounds. In these circumstances, Redding’s tests have shown that a bushing .001" larger (than the loaded round) may give you the desired bullet grip.
Värmebehandlade stålhylsor som ovan, men med tillägg av en Titanium Nitride-beläggning för att ytterligare öka den effektiva ythårdheten och minska storleksfriktionen. Hylsor finns tillgängliga i hela intervallet .185" till .368" i .001" intervaller. De sista tre siffrorna av delen (#RD76XXX) anger bushingstorlek. .185 till .252 .253 till .305 .306 till .368
Bestämning av Redding Bushing Storlek
Den rätta bushingstorleken kan enkelt bestämmas genom att mäta den yttre halsdiametern på dina laddade patroner med en precisionsmikrometer eller en skjutmått. Subtrahera helt enkelt .001" från patronen som hade den minsta genomsnittliga halsdiametern. Denna diametern bushing kommer vanligtvis att storleksanpassa hylsor just tillräckligt för att skapa den rätta presspassningen för kulan.
Om du använder en Typ “S” stil die och inte bearbetar utsidan av dina hylsor, föreslår vi att du använder en bushing som är .002" mindre än din minsta genomsnittliga halsdiameter, och använder expanderbollen som ingår med din Typ “S” die. Denna storlek bushing kommer fortfarande att ge dig minimal storleksanpassning (maximera livslängden på din mässing) och expanderbollen kommer att säkerställa att varje patron har samma kulgrepp.
Redding har funnit att när du har hylsor med halsväggtjocklekar på den tunna sidan av SAAMI-toleransen, kommer din avfyrade hylsa att mäta avsevärt större (.006" till .010" större) än dina laddade patroner. I dessa omständigheter har Reddings tester visat att en bushing som är .001" större (än den laddade patronen) kan ge dig det önskade kulgreppet.
