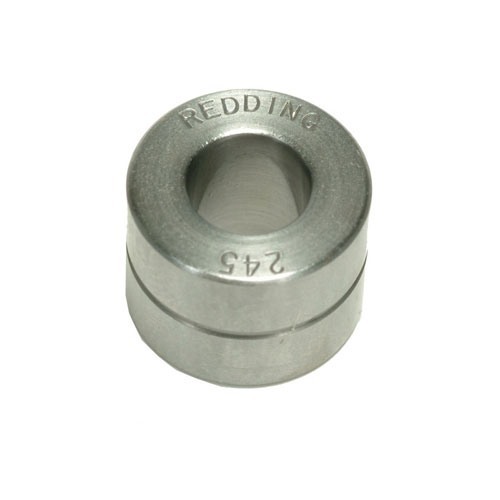

Heat treated steel bushings. The sizing diameters are hand polished with a surface hardness of Rc 60-62 to reduce sizing effort. Bushings are available throughout the range of .185" thru .368" in .001" increments. The last three digits of the part (#RD73XXX) denotes bushing size. View other sizes: .185" to .250" .251" to .305" .306 to .368"
Determining Redding Bushing Size
The proper bushing size can be easily determined by measuring the outside neck diameter of your loaded cartridges with a precision micrometer or a dial caliper. Then, simply subtract .001" from the cartridge that had the smallest average neck diameter. This diameter bushing will generally size case necks just enough to create the proper press fit for the bullet.
If you are using a Type “S” style die and not turning the outside of your case necks, we suggest using a bushing .002" smaller than your smallest average neck diameter, and using the expander ball included with your Type “S” die. This size bushing will still give you minimal sizing (maximizing the life of your brass) and the expander ball will insure that each cartridge has the same bullet grip.
Redding has found that when you have cases with neck wall thicknesses on the thin side of the SAAMI tolerance, your fired case will measure considerably larger (.006" to .010" larger) than your loaded rounds. In these circumstances, Redding’s tests have shown that a bushing .001" larger (than the loaded round) may give you the desired bullet grip.
Värmebehandlade stålbuschar. Storlekarna är handpolerade med en ythårdhet på Rc 60-62 för att minska storleksanpassningsinsatsen. Bushings finns tillgängliga i hela intervallet från .185" till .368" i .001" intervaller. De tre sista siffrorna i delen (#RD73XXX) betecknar bushingstorlek. Se andra storlekar: .185" till .250" .251" till .305" .306 till .368"
Bestämning av Redding Bushing Storlek
Den korrekta bushingstorleken kan enkelt bestämmas genom att mäta den yttre nackdiametern på dina laddade patroner med en precisionsmikrometer eller en skjutmått. Subtrahera sedan .001" från patronen som hade den minsta genomsnittliga nackdiametern. Denna diameter bushing kommer generellt att storleksanpassa hylsor just tillräckligt för att skapa den korrekta presspassningen för kulan.
Om du använder en typ “S” stil die och inte snurrar på utsidan av dina hylsor, rekommenderar vi att använda en bushing som är .002" mindre än din minsta genomsnittliga nackdiameter och använda expanderbollen som ingår med din typ “S” die. Denna storlek bushing kommer fortfarande att ge dig minimal storleksanpassning (maximera livslängden på ditt mässing) och expanderbollen kommer att säkerställa att varje patron har samma kulgrepp.
Redding har funnit att när du har hylsor med nackväggtjocklekar på den tunna sidan av SAAMI-toleransen, kommer din avfyrade hylsa att mäta avsevärt större (.006" till .010" större) än dina laddade patroner. I dessa fall har Reddings tester visat att en bushing som är .001" större (än den laddade patronen) kan ge dig det önskade kulgreppet.
