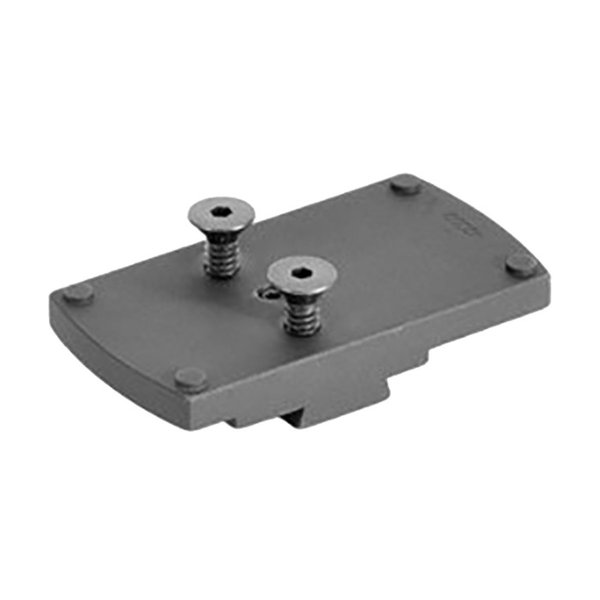

EGW's red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install. Simply remove the rear sight on your gun and replace it with mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take the mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs 2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights 2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights The screws that are included with this mount require a 5/64'' allen wrench for installation. Modification of your firearm may nullify the manufacturer's warranty. This product should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product. This mount fits: Smith & Wesson Model 52 This mount does not fit: Smith & Wesson Model 41
EGW:s rödpunktsikter är avsedda att installeras från vänster till höger (med mynningen framåt). Dovetailen har en progressiv avsmalning för att underlätta installationen. Ta helt enkelt bort bakre sikte på din pistol och ersätt det med fästet för att montera din Vortex Viper/Venom, Burris FastFire eller Docter rödpunktsikte. Du kan ta bort fästet och ersätta ditt bakre sikte när som helst. Monteringsmaterial ingår. Installationsanvisningar Ta bort det bakre siktet* Installera EGW Sight Mount i dovetailen Dra åt skruven (om tillämpligt) Placera rödpunktsiktet på EGW Sight Mount (att placera en liten bit papper mellan rödpunktsiktet och siktfästet underlättar borttagning och håller Loctite borta från rödpunktsiktet.) Applicera blå Loctite på de medföljande monteringsskruvarna Åtdragning av monteringsskruvarna till 15in/lbs 2 Button Head Cap Screws - Ingår för Vortex Viper och Venom Sikter 2 Flat Head Cap Screws - Ingår för Burris FastFire och Docter Sikter Skruvarna som ingår med detta fäste kräver en 5/64'' insexnyckel för installation. Modifiering av ditt vapen kan ogiltigförklara tillverkarens garanti. Denna produkt bör installeras och kontrolleras av en kvalificerad vapensmed. Ingen ansvarighet uttrycks eller underförstås för skador eller skador som kan uppstå till följd av felaktig installation eller användning av denna produkt. Detta fäste passar: Smith & Wesson Model 52 Detta fäste passar inte: Smith & Wesson Model 41
